Introducing the new and improved WAM-X10+
Completely redesigned from the ground up – now with worldwide 5G coverage, new 6 GHz detection for the latest generation of WiFi/Bluetooth devices and a range of up to 50 metres. More power, more bands and better precision than ever to expose hidden eavesdropping and unauthorised wireless activity.

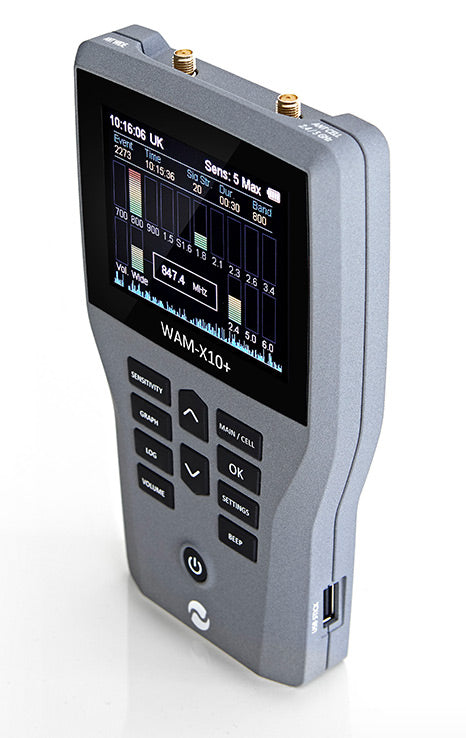

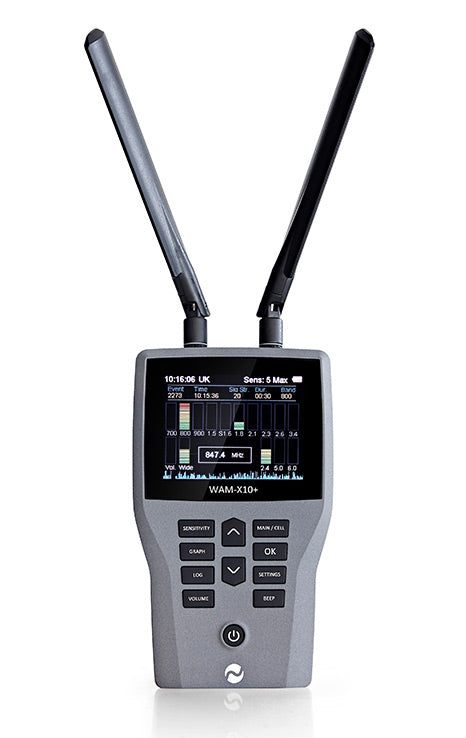

WAM-X10+ — Handheld Multi-Band Detector for 2G/3G/4G/5G, Broadband, WiFi & Bluetooth
The WAM-X10+ is a portable multi-band radio frequency (RF) detector, built as a handheld tool for field use. It detects and logs transmissions from all types of RF devices, including mobile phones, smartphones, vehicle trackers (GPS trackers), WiFi hotspots, GSM eavesdropping devices (bugs) and hidden wireless 3G/4G/5G cameras. The WAM-X10+ provides complete coverage and logging of all activity in the surrounding area.
Characteristics:
Type: Portable multi-band radio frequency (RF) detector
Format: Handheld
Detects: Mobile networks (2G/3G/4G/5G) worldwide, broadband (10 MHz–14 GHz), WiFi/Bluetooth/video at 2.4, 5 and 6 GHz, and satellite phones (L-band, 1.6 GHz)
Features:
Worldwide mobile band coverage – select a region (UK, Europe, Asia, Africa, North America, South America, Australia) to cover all relevant mobile bands, including 5G
Separate 10 MHz–14 GHz broadband detector with frequency counter (up to 6 GHz) and graphical "Livescan" to identify the signal type
Separate 2.4 GHz, 5 GHz and 6 GHz detector for WiFi, Bluetooth, video and other wireless devices

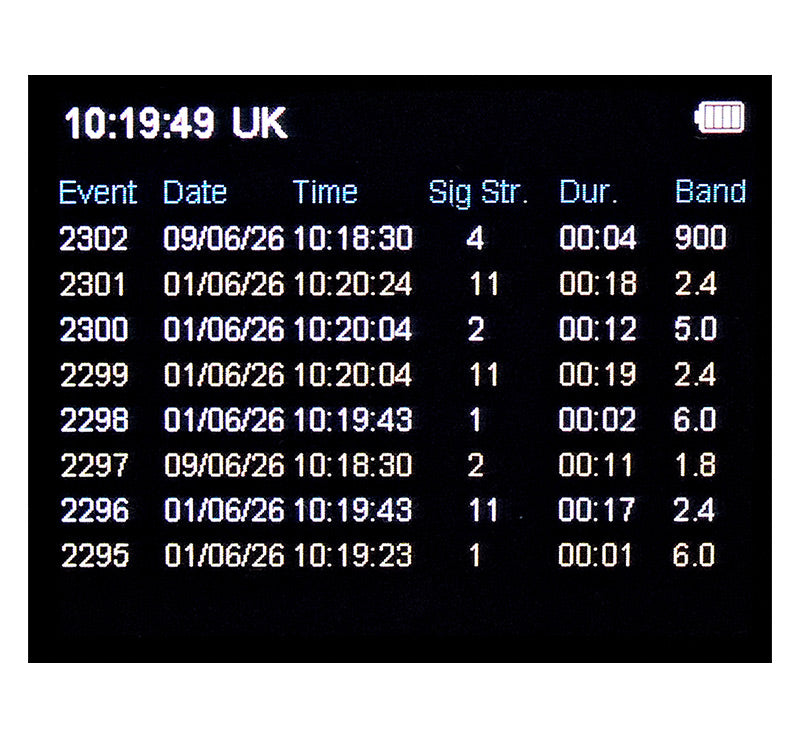

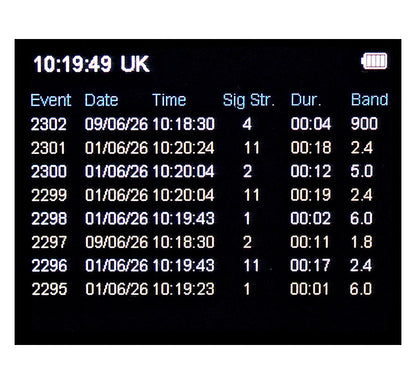

Event log stores up to 4,000 events (time/date, band, duration and signal strength) – shown on screen or downloaded to a USB stick

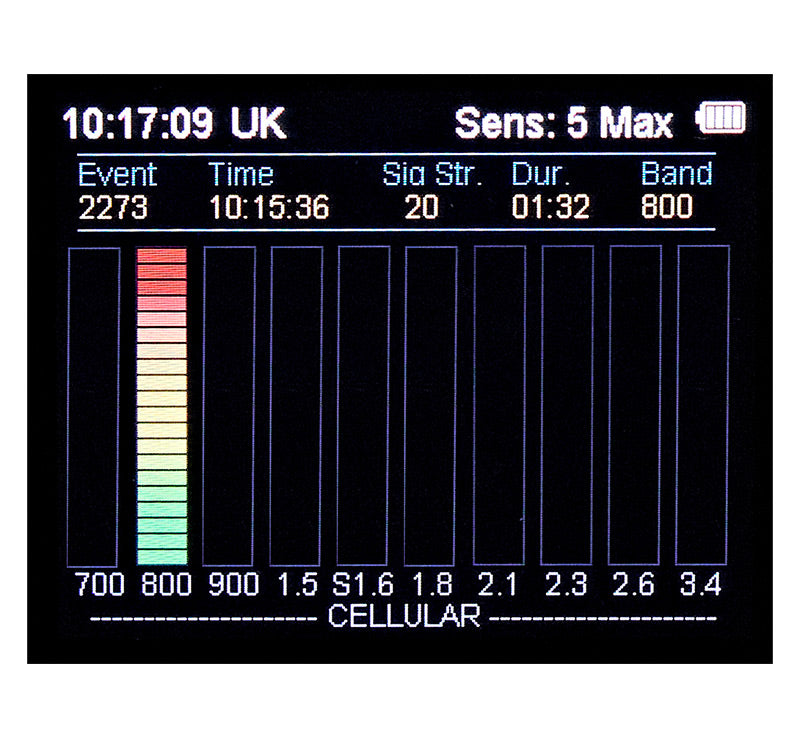

Graph mode shows a real-time or historical graph of all detected activity
Range of up to 50 metres depending on signal strength and environment, thanks to a powerful high-gain RF front end

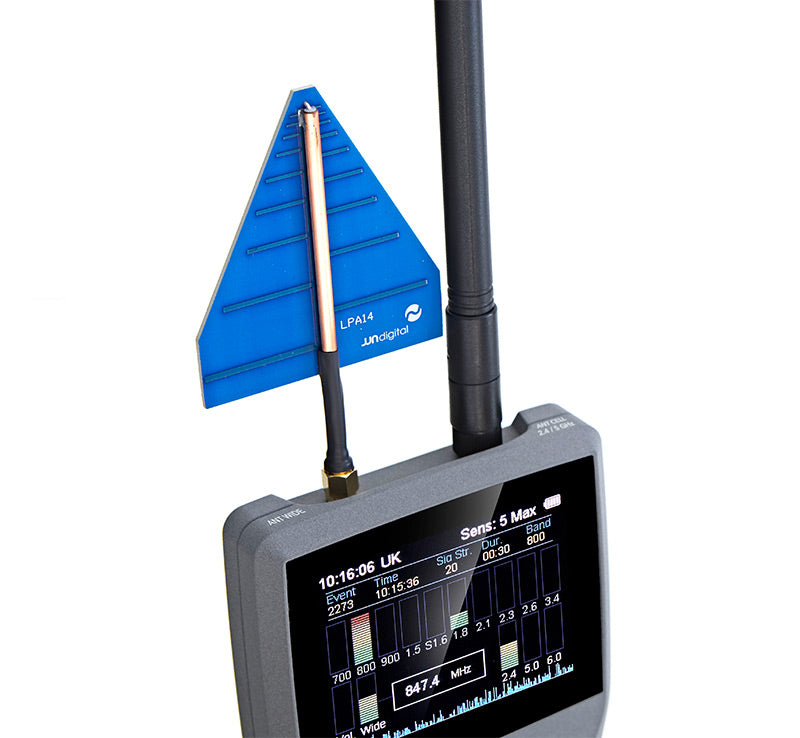

Adjustable articulated antennas (2) plus a separate directional log-periodic antenna (LPA-14-SMA) for precision searching
3.5" colour TFT display with a clear menu system, audible signal ("Beep") and silent vibration mode
Machined aircraft-grade aluminium enclosure for high durability
Made in the United Kingdom
Supplied with:

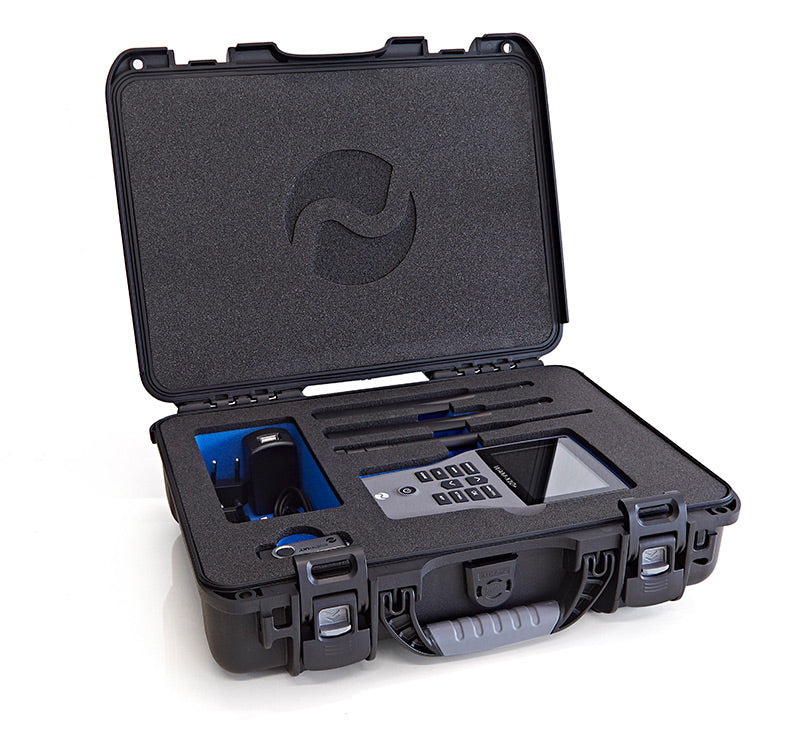

WAM-X10+ main unit, 2 adjustable articulated antennas + low-frequency antenna (0–800 MHz), LPA-14-SMA directional antenna, 5V USB-C charger (110–240V with international adapters), headphones, USB stick and a military-standard protective case
Technical specifications:
Broadband frequency: 10 MHz–14,000 MHz (14 GHz)
Mobile band frequency: 300 MHz–6 GHz (international bands, max 10 bands displayed at once, sensitivity -70 dBm)
Satellite phone band: L-band, 1.6 GHz
WiFi/Bluetooth frequency: 2400–2485 MHz, 4900–5950 MHz and 5925–7125 MHz
Display: 3.5" high-contrast colour TFT
Battery: Built-in rechargeable lithium polymer battery, up to 8 hours of operation, charging time approx. 4 hours via USB-C
Operating temperature: -15°C to +50°C, relative humidity below 90%
Dimensions: 173 x 103 x 28 mm
Weight: Main unit 500 g, complete in case 2.4 kg
Signal processing: RISC-based microcontroller with real-time clock
